Battioni Pagani

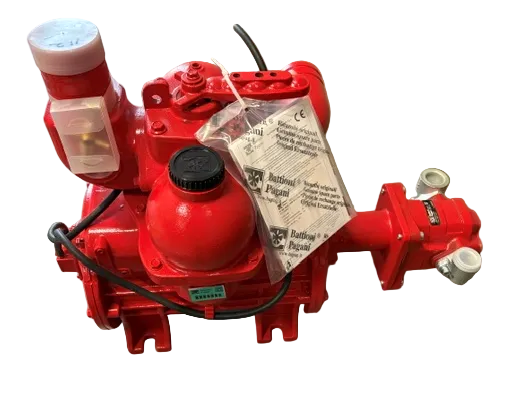

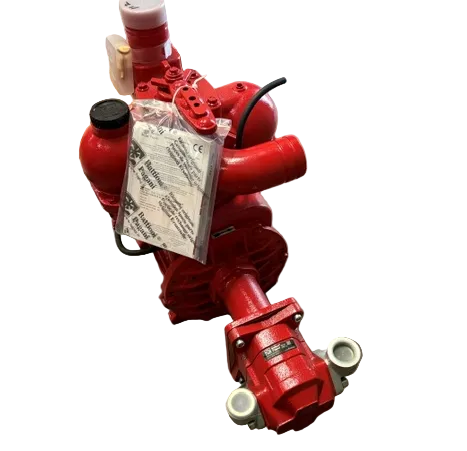

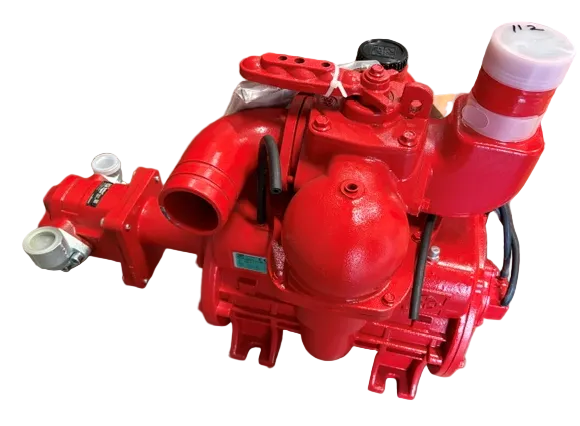

Battioni 9000L Hydaulic Driven Vacuum Pump
Regular price
£2,500.00
Shipping calculated at checkout.
| Nominal volume flow rate |
9030 l/min
|
|
|---|---|---|
| Drive type |
Hydraulic
|
|
| Rotation direction |
Clockwise (CW)
|
|
| Ballast air injection system |
No
|
|
| Lubrication system type |
Forced
|
|
| Vane type |
Long life
|
|
| Crash protection system |
Yes
|
|
| Max vacuum |
0.95 BAR
|
|
| Max. relative pressure |
1.5 BAR
|
|
| Power requirement for max. pressure |
25 kW
|
|
| Power requirement for max. vacuum |
16 kW
|
|
| D,PDiameter of hose connection |
80 mm
|
|
| Safety valve connection diameter |
2 Inch
|
|
| Depression valve connection diameter |
1-1/2 Inch
|
|
| ETotal length |
577 mm
|
|
| OTotal width |
390 mm
|
|
| GHeight |
575 mm
|
|
| FMounting holes diameter |
22 mm
|
|
| B,LMounting holes distance |
|
|
| AMounting holes to shaft end distance |
247 mm
|
|
| CMounting holes to end distance |
141 mm
|
|
| MShaft centre to left side end distance |
195 mm
|
|
| NShaft centre to right side end distance |
195 mm
|
|
| IShaft centre to bottom distance |
164 mm
|
|
| Max. shaft rotation |
1400 r/min
|
|
| Reservoir capacity |
2.5 l
|
|
| Weight |
140 kg
|
