Battioni Pagani

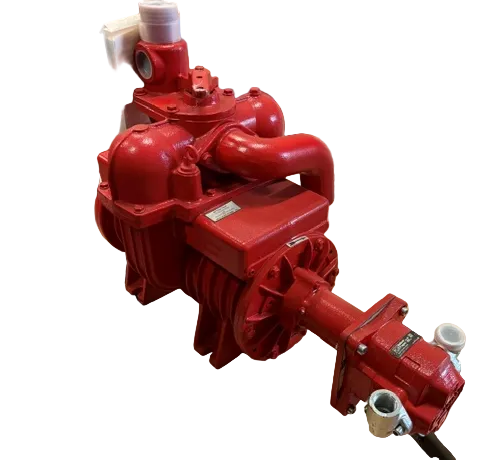

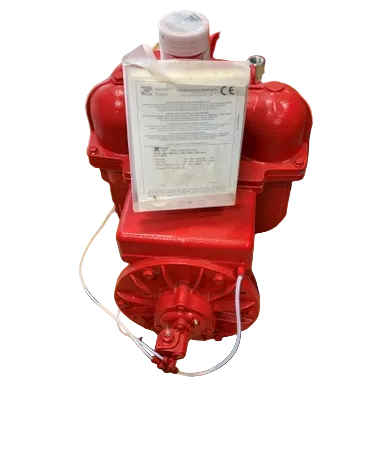

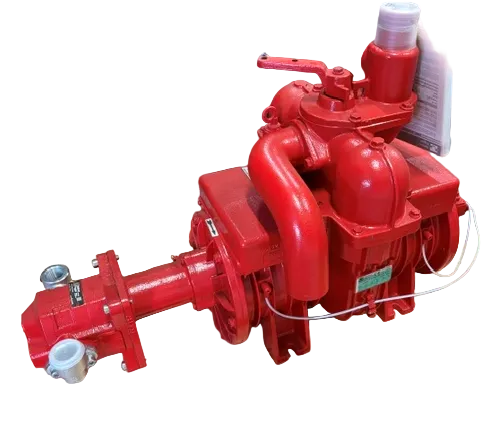

Battioni 8000L Hydaulic Driven Vacuum Pump With Auto Lube System
Regular price
£2,800.00
Shipping calculated at checkout.
| Nominal volume flow rate |
8100 l/min
|
|
|---|---|---|
| Drive type |
Hydraulic
|
|
| Rotation direction |
Clockwise (CW)
|
|
| Ballast air injection system |
No
|
|
| Consists of |
|
|
| Lubrication system type |
Auto Lube
|
|
| Crash protection system |
No
|
|
| Max vacuum |
0.9 BAR
|
|
| Max. relative pressure |
1.5 BAR
|
|
| Power requirement for max. pressure |
22 kW
|
|
| Power requirement for max. vacuum |
15 kW
|
|
| Hydraulic motor required capacity |
63.5 l/min
|
|
| DDiameter of hose connection |
80 mm
|
|
| Safety valve connection diameter |
1-1/2 Inch
|
|
| ATotal length |
735 mm
|
|
| BTotal width |
410 mm
|
|
| CHeight |
597 mm
|
|
| HMounting holes diameter |
15 mm
|
|
| IMounting holes distance |
|
|
| EMounting holes to shaft end distance |
287 mm
|
|
| GMounting holes to end distance |
196 mm
|
|
| KShaft centre to left side end distance |
195 mm
|
|
| XShaft centre to right side end distance |
215 mm
|
|
| LShaft centre to bottom distance |
164 mm
|
|
| Max. shaft rotation |
1400 r/min
|
|
| Weight |
153 kg
|
