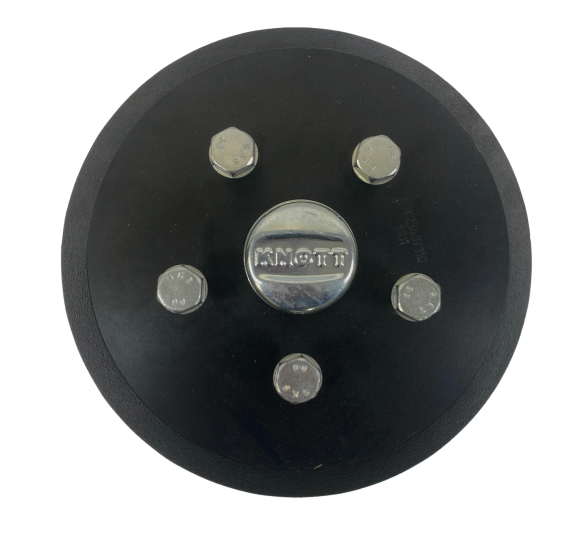

KNOTT Y SERIES 5 STUD HUB Y (NUGENT LIVESTOCK TRAILER CURRENT HUB)

The Knott Y Series 5-Stud Hub is a genuine Knott-Avonride hub designed for trailers equipped with 250x40 mm brake assemblies.
This hub is used on the current Nugent Livestock

Knott Part Number: C24015.001
Drum Size: 250 mm internal diameter x 40 mm shoe width
Stud Configuration: 5 studs on a 112 mm Pitch Circle Diameter (PCD)
Wheel Studs: M12 x 1.5 x 24 mm bolts
Bearing Type: Sealed-for-life bearing (Knott 45887.11 / 31139)
One-Shot Nut:M24 x 1.5 mm, torque to 280 Nm
52mm hub cap

What's Included:
1 x Knott Y Series Brake Drum
1 x Sealed Bearing (pre-installed)
1 x M24 One-Shot Nut
1 x Hub Cap
